Silent Hawk® SE

Centronics Parallel Data Capture System

$895.95

(VAR and quantity discounts available)

View the Silent Hawk® Product Brief

Download the PDF

Silent Hawk 2

Requires one-time purchase of Server Application: $300.00
Server Application supports up to 100 Silent Hawks®.

Applications

  • Eliminate costly data entry errors by eliminating the need to manually key in data.
  • Reduce ink, toner and paper costs by eliminating a hard-copy output printer.
  • Print out your data while saving a copy to an electronic archive.
  • Capture data from legacy systems and equipment.
  • Process your print data and machine output in real-time.

Capture Parallel Port Data

Silent Hawk® SEs capture data in place of your printer. This enables the creation of an electronic version of your data while eliminating hard-copy output. This method of data acquisition eliminates errors associated with manual re-entry and reduces cost by minimizing the ink, toner, and paper requirements of your company.

Ethernet Data Connectivity

Silent Hawk® SEs connect to the Silent Hawk Control Console and transmit their capture data via an Ethernet connection. This allows the Silent Hawk® SE to be flexible and provides you with a direct connection method (via crossover cable), a local connection method (via patch cable) or a remote connection method (via VPN configurations and the internet).

Automatic Capture File Segmentation

With automatic capture file segmentation, Silent Hawk® SEs seamlessly separate capture data into files based off of certain criteria. The use of script files provide users with a way to easily modify capture settings and affect changes to their capture data in real-time.

Default capture file segmentation options include:
Start of File (SOF): Segments data right before a user specified ASCII or Hex string.
SOF with Line Delimiter: Allows SOF segmentation to occur at a page boundary that is specified by the user.
End of File (EOF): Segments data just after receiving a user specified ASCII or Hex string.
Clock Time: Segments data at times specified by the user. Four different clock times may be specified.
Periodic: Segments data at a given interval. Users specify the interval in minutes and segmentation occurs each time an interval occurs.

Reliable and Never Loses Data

Silent Hawk® SEs capture data non-intrusively provided that the Capture PC matches or exceeds the printer's data stream rate. While capturing data non-intrusively, Silent Hawk® SEs do not interfere with printing operations of the data source. If the Capture PC begins to fall behind the Silent Hawk® SE's data capture rate, the Silent Hawk® SE will slow down the transfer rate of its internal printer so that the speed rates can be matched. Most important of all this ensures that your data is never lost.

Simple and Easy to Install

Silent Hawk® SEs come complete with all the cables required for use with a Centronics parallel data interface, a crossover cable and a patch cable. An AC/DC Power Adapter, a Quickstart Guide, and a Silent Hawk® User Manual are supplied with each Silent Hawk® SE as well. All that you need to use the Silent Hawk® SE is a PC that has Windows 98 or later, an Ethernet interface and the Silent Hawk® Control Console Application.

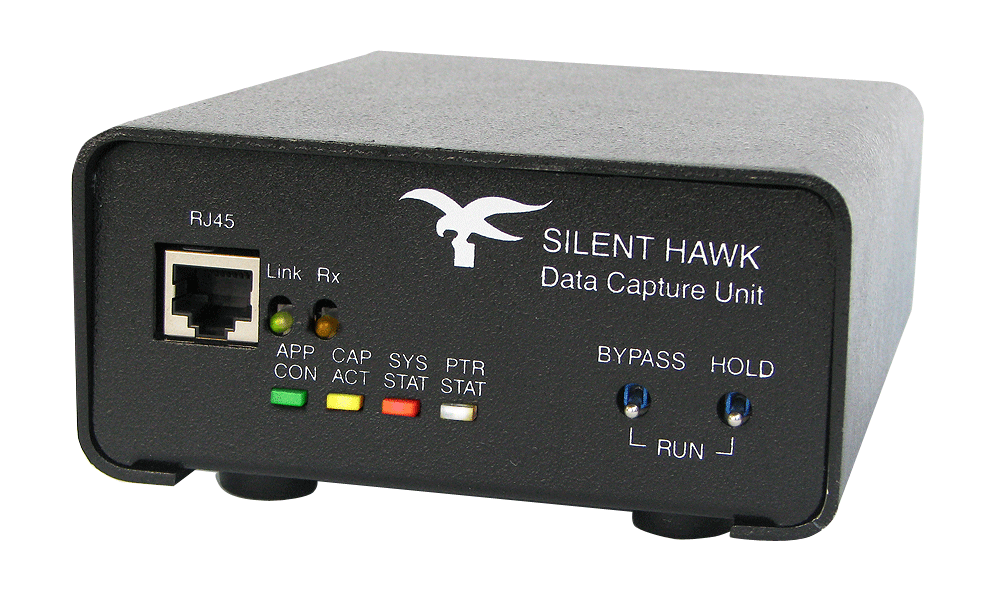

Silent Hawk® SE's Front Panel

Silent Hawk® SEs front panels provide indicators to users about the state of the data stream and allows users to test their data sources. The front panel LEDs notify users about the Silent Hawk's® status. Front panel switches allow the user to exit data capture via the Bypass Switch or test connectivity with the data source via the Hold Switch.

Silent Hawk® SE Specifications

Data Source PC Centronics Compatible Parallel Port
Capture PC IBM Compatible PC with 10 Base-T Ethernet (or better)
Operating System Windows 98/98SE/2000/XP/Vista
Hard Disk Space Required 2.00 Megabytes
RAM Required 8.00 Megabytes (16 Megabytes with 100 Silent Hawks)
Burst Capture Rate 0.50 Megabytes / second
Sustained Capture Rate 50.0 Kilobytes / second
Max Capture File Size 2.00 Gigabytes
Line Loading 1 LS
FIFO Capacity 64 Kilobytes
Dimensions 2.4" H x 4.7" W x 6.4" D
Power Source 120 VAC 60 Hz/12.0 VDC 500 mA AC adapter
(220 VAC 50Hz - Supplied with European version)
Weight 1.25 Pounds
